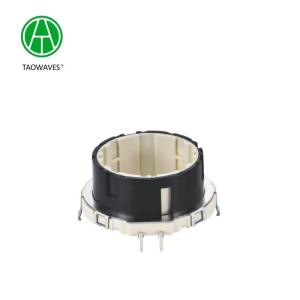

High Precision Angle Encoder with Magnetic Shaft Sensor
Ask Latest Price
Video Channel
Model NO. :EC35B10V01
Readout Mode :Contact
Operating System :Contact Brush Type
Signal Output :Voltage Output
Axle Sleeve Type :Empty Type
Package :-
Installation Form :-
Brand :Taowaves
Axonia :-
Customized :Support Customization
Transport Package :Carton
Specification :35mm
Trademark :TAOWAVES
Origin :China
Customization :Available
Type :Rotary Encoder
Working Principle :Incremental
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description
30mm ABC Switch Encoder 30 positioning Hollow Shaft Rotary Encoder Hollow Absolute Encoder
High Precision Angle Encoder with Magnetic Shaft Sensor
EC35 Series Product Specifications
1.Electrical Characteristics
Rated voltage: DC 5V
Resolution: 10pulses/360°
Insulation resistance: 100MΩ Min at DC 250V
Dielectric strength: 1 minute at AC300V
Phase Difference: 10≥8.0ms
2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 10~30mN.m.(100~300gf.cm)
3.Endurance Characteristics
Rotational life: 30,000cycles
Operating temperature range: -30ºC to 80ºC
Storage temperature range: -40ºC to+85ºC


Our Factory
High Precision Angle Encoder with Magnetic Shaft SensorHigh Precision Angle Encoder with Magnetic Shaft SensorHigh Precision Angle Encoder with Magnetic Shaft SensorApplication:
High Precision Angle Encoder with Magnetic Shaft Sensor

High Precision Angle Encoder with Magnetic Shaft Sensor
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
